29er V3

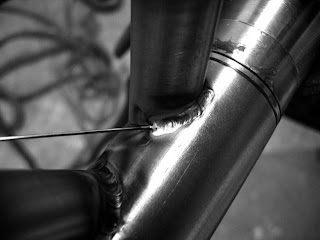

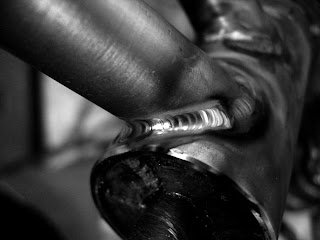

In process welding non-drive side chainstay to bottom bracket..

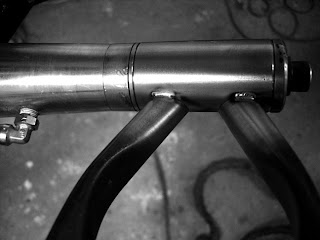

Tacks..

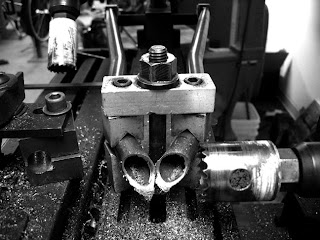

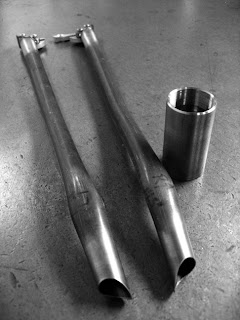

cut, mitered and ready for the jig..
First I bend and form both chainstays. Then I miter the dropout/chainstay junction and tack those in place. Once that is complete, these two sub assemblies get loaded into the jig for the mitering of the chainstay to bottom bracket junction. Last step is to clean it all up, remove all the dirt/grime, measure 4000 times throughout the whole ordeal, while squinting at it making sure it passes the stink eye test and then load everything into the frame jig to be tacked and welded. Just a few steps naturally..
